Streetlight Series 3 – IGNIS
In major outdoor environments such as arterial roads, commercial corridors, campuses, and large residential precincts, conventional street lighting often struggles to deliver consistent, glare-controlled illumination, resulting in uneven light distribution, visual discomfort, and increased energy and maintenance costs — challenges that directly impact public safety, user experience, and long-term operating budgets. The Streetlight Series 3 – IGNIS (40 W, 45 W) by Intelux addresses these issues with a high-performance LED street lighting solution engineered for uniform, glare-controlled illumination and optimized light distribution across extensive outdoor areas. Designed for roadways, boulevards, pathways, parking zones, and civic spaces, this commercial LED streetlight offers energy-efficient performance, rugged weather-resistant construction, superior color rendering, and long service life — making it a dependable choice for facility managers, lighting consultants, and EPC decision makers focused on safety, performance reliability, and long-term operational value.
Models:
- ISL-133-40-57-60-2-DP-ST 40W
- ISL-133-45-57-60-2-DP-ST 45W
Construction Details:

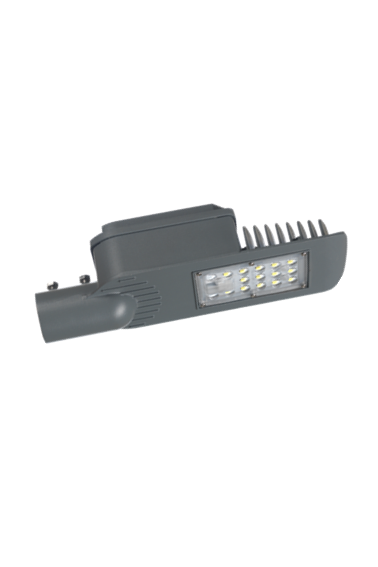

The IGNIS High Efficiency Luminaire (40 W & 45 W) is built with a robust die-cast aluminum housing and corrosion-resistant powder coating for superior durability and heat management. Its high-transmittance water & dust resistant optics cover provides glare-free illumination while protecting LEDs from dust and moisture. The integrated constant-current driver ensures stable performance and includes surge and thermal protection. Equipped with an efficient heat-sink and an adjustable mounting bracket, the fixture offers reliable outdoor operation with long service life.
Benefits:
- High Lumen Output: Ensures bright and uniform lighting across the workspace.
- Energy Efficient: Consumes up to 50% less energy compared to fluorescent tubes.
- Long Operational Life: 50,000+ hours life reduces maintenance and replacement costs.
- Flicker-Free Illumination: Stable light output enhances visual comfort and productivity.
- Eco-Friendly: Mercury-free design ensures environmental safety.
- Sleek & Aesthetic Design: Complements modern interiors with a premium finish.
- Thermal Management: Efficient heat dissipation for stable performance.
- Quick Start & Instant Light: No warm-up delay.
- Reliable Operation: High power factor and surge protection for durability in Indian power conditions.
| Parameter | Specification |
|---|---|
| Model | Streetlight Series 3 – IGNIS (High Efficiency Luminaire) |
| Wattage Options | 40 W / 45 W |
| Input Voltage | 220–240 V AC, 50/60 Hz |
| Light Source | High-efficiency SMD LED |
| Luminous Efficacy | Up to 130 lm/W |
| Color Temperature (CCT) | 3000 K – 6500 K |
| CRI (Color Rendering Index) | > 70 |
| Beam Angle | Type II Distribution |
| Power Factor | > 0.95 |
| Dimming Options | 0–10 V / Step Dimming (Optional) |
| Ingress Protection | IP66 (Dust & Water Resistant) |
| IK Rating | IK08 (Impact Resistant) |
| Operating Temperature | –10 °C to +55 °C |
| Housing Color Options | Grey / Black |
| Mounting Type | Pole-mounted with adjustable bracket |
Applications:
- City and Township Roads
- Industrial and Commercial Campuses
- Residential Colonies and Pathways
- Parking Lots and Perimeter Lighting
- Municipal Infrastructure Projects
- Smart City and Rural Lighting Applications
